- product name： RG hose cable fixed head
- category： Metal hose and joints
- Product Features：
RG type products of special design can prevent loose wires, and metal hose can be attached, loading and unloading simply pull out plug without tools, greatly reduces the installation time, large range of clamping cable tensile resistance strong, products are acid and alkali resistant, corrosion resistant properties, such as chemicals and solvents can be water-proof and dust-proof. The products are widely used in various fields.

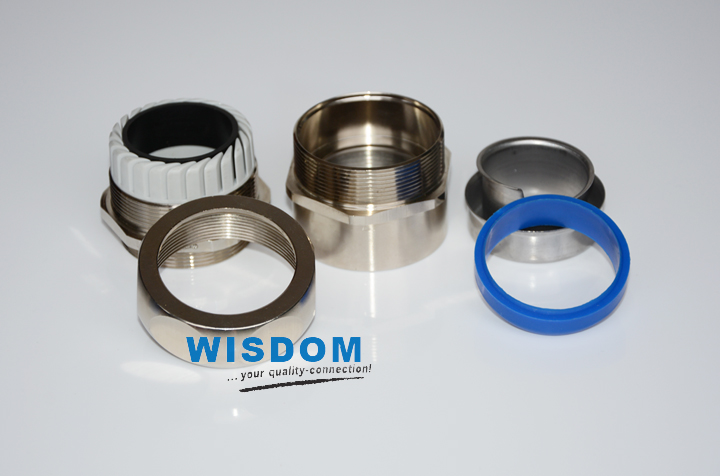

The product materials: A, C, F, G parts are made of hpb59-1 copper nickel-plated and can also be made with sus304/316 stainless steel, the D parts are made of nylon, the B and E parts are made of EPDM
Screw specifications: Metric (Metric/EN50262), PG teeth, G (PF) teeth, and dental dental (NPT), various specifications are acceptable
Working temperature: - 40 ℃ to + 100 ℃, can short time to + 120 ℃
Protection grade: within the range of the specified card, use the o-ring to rotate the head to reach IP67

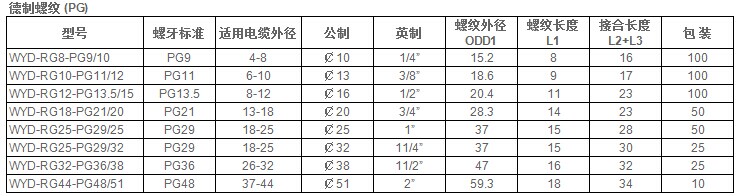

Product specifications
