- product name： LT type copper plated cable joint
- category： Lock valve products
- Product Features：
This product USES the high quality brass HPB59-1, accord with environmental protection requirement of nickel plating outside, plating 9 microns thickness, is one of the most popular on the market at present, because the production is huge, the price is very competitive, conform to the requirements of the export European and American countries of eia, the free phone: 400-088-6591

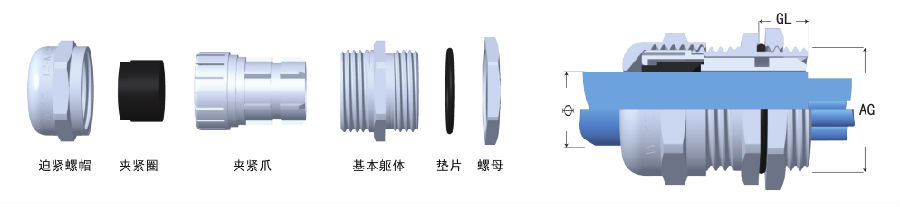

Material: the section of the A.C.F is made of butyronitrile rubber in the b.e. section of high quality Brass, and the part D is made of white nylon.
Thread specification: Mefric (PG), British production (G), American (NPT)
Working temperature: static: - 40 ℃ ~ + 110 ℃, a short time can be up to + 120 ℃; Dynamic: - 20 ℃ ~ + 80 ℃, a short time can be up to + 100 ℃.
Protection grade: within the range of the regulation, use o-ring seal to tighten the head and make the IP68 waterproof.
Method of use: WYD - LT type metal cable waterproof connector is the product of form a complete set of the cable, connector cable can be lock, the other end can access devices on the box body, also can choose screw lines according to access into the export for the internal thread of electric devices.

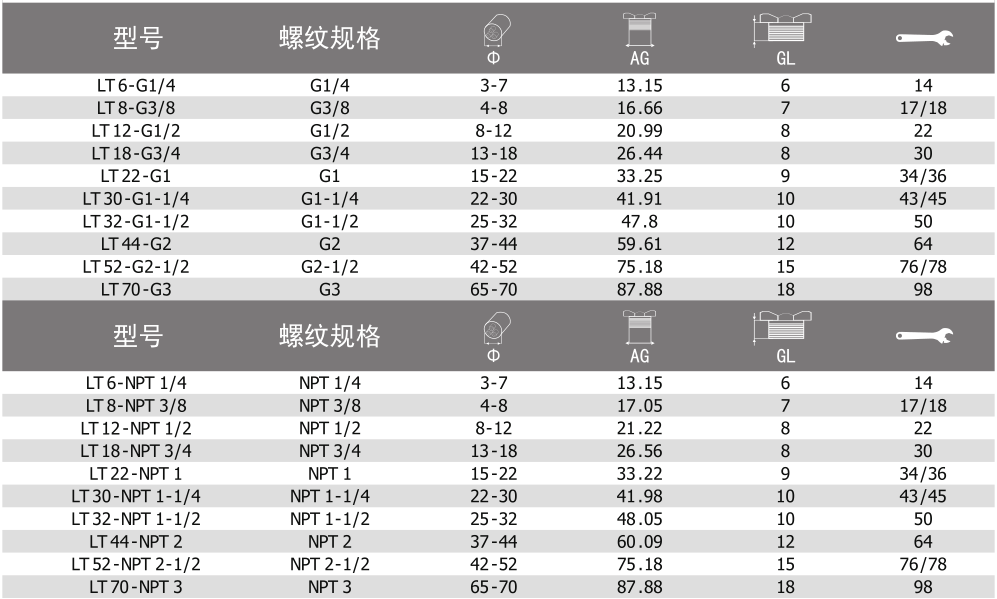

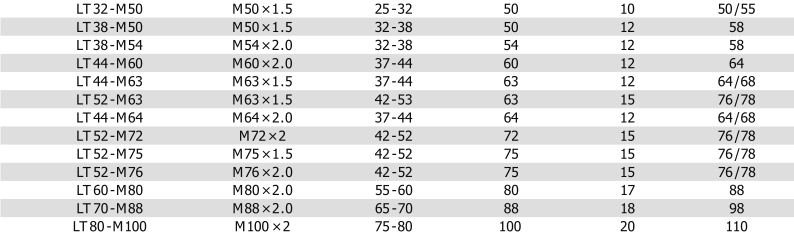

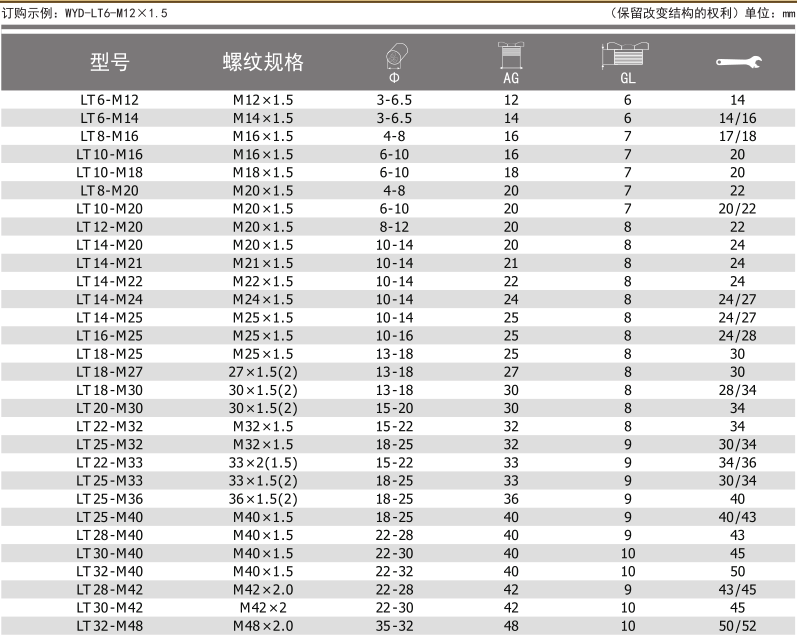

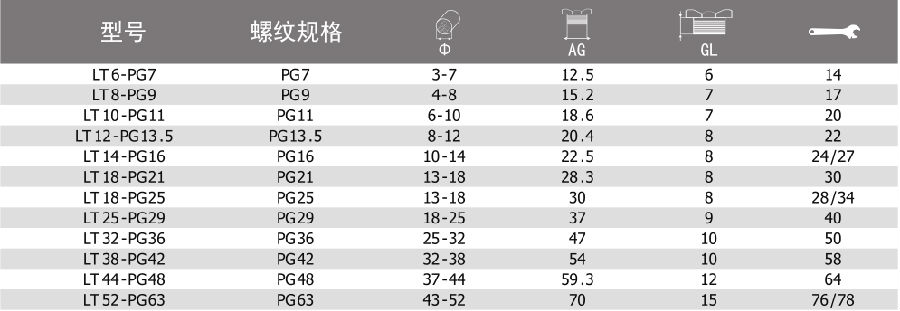

Product specifications
