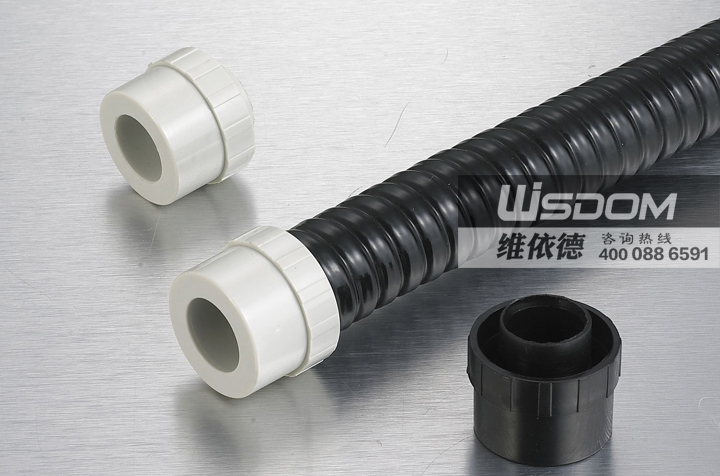

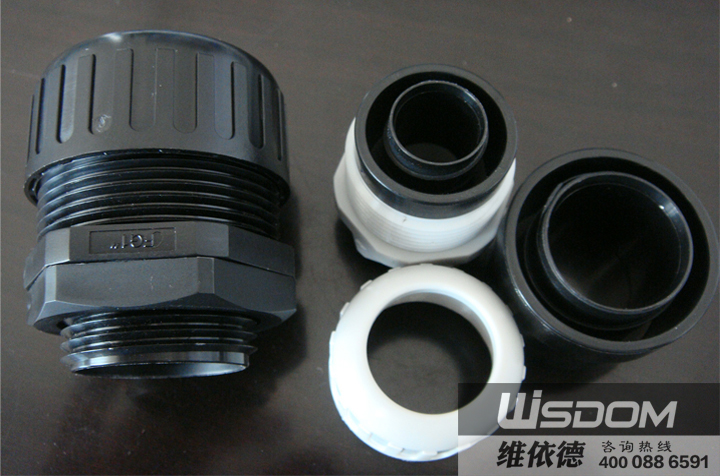

- product name： Metal hose port protection
- category： Electrical accessories
- Product Features：
Fixed metal hose, protect hose end cable from wear and avoid injury to the operator.
The number of clicks：6281
product description
Product materials: nylon PA66 with UL approval
· product color: black, gray
· use: fixed metal serpents, protect the wire from the tail end of the snake, and avoid injury to the operator.
Product specifications
| Item No | Applicable hose specification | Size Dimensions | |||
| Serial number | For Conduit Size | A | B1 | B2 | C |
| NF5/16 | 5/16＂ | 9.2 | 20 | 20.5 | 20 |
| NF3/8 | 3/8＂ | 10.8 | 20 | 20.5 | 21 |
| NF1/2 | 1/2＂ | 14.2 | 25 | 26 | 24 |
| NF3/4 | 3/4＂ | 18 | 30.5 | 31.5 | 26 |
| NF1 | 1＂ | 23.5 | 36 | 38 | 31 |
| NF1 1/4 | 1 1/4＂ | 32.5 | 45 | 40 | 33 |
| NF1 1/2 | 1 1/2＂ | 37 | 52 | 53 | 36 |
| NF2 | 2＂ | 49 | 64.5 | 65 | 35 |
