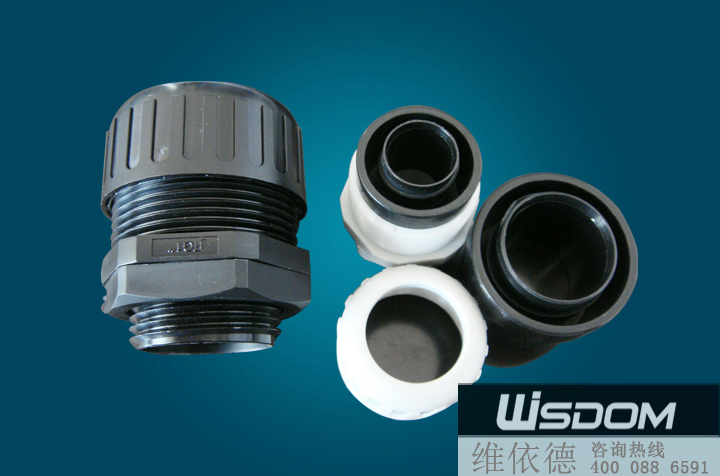

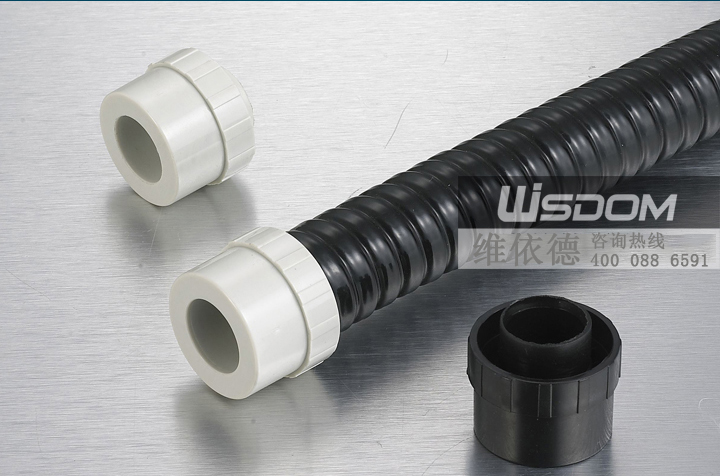

- product name： Nylon metal hose joint
- category： Metal hose and joints
- Product Features：
The design of this product is better than the conventional alloy metal hose joint.
The service life is longer, and it is easy and easy! Popular with clients,
The products are widely used in machinery manufacturing and motor industry!
· screw specifications: Metric (Metric), G (PF/BSP/PS) teeth and PG teeth.
· product materials: ul-approved nylon PA66 (fire proof rating UL 94v-2).
· color: black and gray.
Working temperature: static - 40 ℃ to 100 ℃, or instantaneous heat to 120
Applicable range: can be used with the metal snake tube specification from 5/16 to 2.
Product specifications
适配金属软管 Accommodated Pipes | 编号 Item No | 螺牙规格 | 螺纹外径 | 螺纹长度 Thread Length | 包装 Std Pk |
5/16”管 | M16-AD15.8-ST | M16 x 1.5 | 16 | 10 | 50 |
M16-AD15.8 | M16 x 1.5 | 16 | 15 | 50 | |
3/8”管 | M16-AD15.8-ST | M16 x 1.5 | 16 | 10 | 50 |
M16-AD15.8 | M16 x 1.5 | 16 | 15 | 50 | |
1/2”管 | M20-AD21.2-ST | M20 x 1.5 | 20 | 10 | 50 |
M20-AD21.2 | M20 x 1.5 | 20 | 15 | 50 | |
3/4”管 | M25-AD26.2-ST | M25 x 1.5 | 25 | 10 | 50 |
M25-AD26.2 | M25 x 1.5 | 25 | 15 | 50 | |
1”管 | M32-AD34.5-ST | M32 x 1.5 | 32 | 10 | 20 |
M32-34.5 | M32 x 1.5 | 32 | 15 | 20 | |
| 1 1/4”管 | M40-AD42.5 | M40 x 1.5 | 40 | 15 | 10 |
| 1 1/2”管 | M50-AD48 | M50 x 1.5 | 50 | 15 | 10 |
| 2”管 | M63-AD54.5 | M63x 1.5 | 63 | 25 | 10 |
| 适配金属软管 Accommodated Pipes | 编号 Item No | 螺牙规格 | 螺纹外径 | 螺纹长度 Thread Length | 包装 Std Pk |
5/16”管 | PG16-15.8 | PG16 | 22.5 | 10.8 | 50 |
3/8”管 | PG16-15.8 | PG16 | 22.5 | 10.8 | 50 |
1/2”管 | PG16-21.2 | PG16 | 22.5 | 13 | 50 |
3/4”管 | PG21-28.5 | PG21 | 28.3 | 13 | 50 |
1”管 | PG29-34.5 | PG29 | 37 | 13 | 20 |
| 适配金属软管 Accommodated Pipes | 编号 Item No | 螺牙规格 | 螺纹外径 | 螺纹长度 Thread Length | 包装 Std Pk |
5/16”管 | PF1/2-15.8 | G(PF)1/2 | 20.9 | 15 | 50 |
3/8”管 | PF1/2-18.5 | G(PF)1/2 | 20.9 | 15 | 50 |
1/2”管 | PF1/2-21.2 | G(PF)1/2 | 20.9 | 15 | 50 |
3/4”管 | PF3/4-28.5 | G(PF)3/4 | 26.4 | 15 | 50 |
1”管 | PF1-34.5 | G(PF)1 | 33.2 | 15 | 20 |
1 1/4”管 | PF1 1/4-42.5 | G(PF)1 1/4 | 41.9 | 15 | 10 |
1 1/2”管 | PF1 1/2-48 | G(PF)1 1/2 | 48 | 15 | 10 |
2”管 | PF2-54.5 | G(PF)2 | 60 | 15 | 10 |
