- product name: KTEX single-seal armor/blast joints
- category: Armoured explosion proof series
- Product Features:
KTEX series products, unique structural design, can satisfy EMC electromagnetic shielding and the connection to install the . The main materials are hpb59-1 copper and SUS304, the rest of the materials can be customized and the whole country is free: 400 088-6591
Screw specifications: metric, English, German and American.
Products: the A.C.D.G parts are made of brass nickel-plated. E is made from PA. B.F is made from aging silicone rubber.
Product certification: European CE, explosion-proof EX authentication.
Working temperature: static - 50 ° C to 150 ° C
Protection grade: within the range of the specified card mouth, and use the waterproof o-ring and the clamping ring to tighten the tight head, reaching IP68.
Product features: special clamping claw, and the design of the clamping ring is concave and convex clasped, forced to cooperate with tight head assembly time-savers, large range of fastening cable, pushing more powerful and can be waterproof, dustproof, salt resistance, acid and alkali resistant, alcohol, oil, grease and general agent. Apply to the fixed protection of cable outlet and seal dustproof water.
It is said that this series is suitable for higher environment use, the metal parts and rubber are thickly designed and high strength.
The default nut is the flat nut. If want to prevent electromagnetism nut to need to buy another
Product specifications

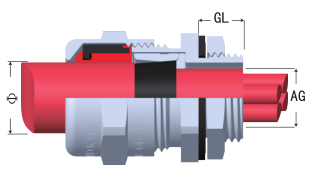

产品结构图

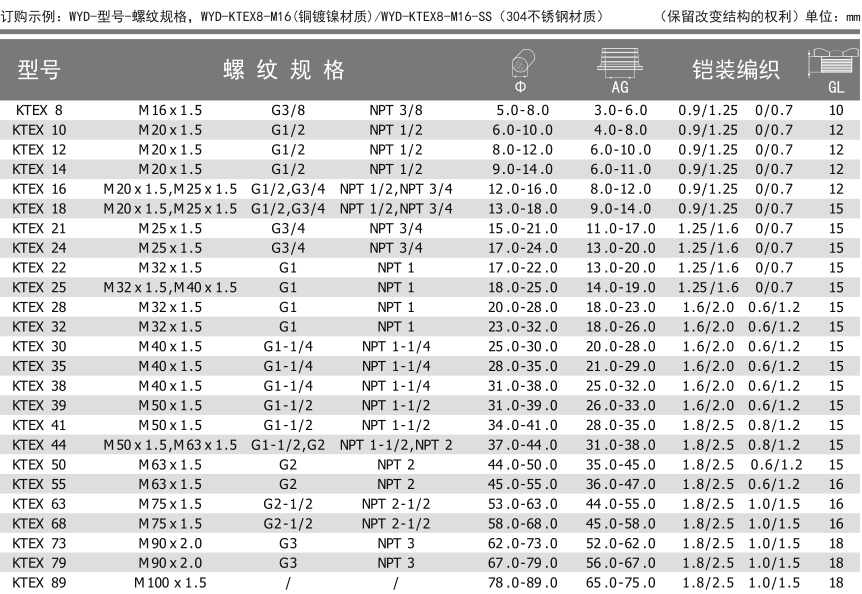

产品选型表
