- product name： LGM waterproof cable connector
- category： Nylon hose and connectors
- Product Features：
WYD - LGM waterproof wave tube cable joint, which can connect the nylon corrugated pipe, also can intensify internal through the cable, and can achieve IP68 protection effect, popular in the electrical connection in the design, the product can make the external thread, can also make the internal thread, the material of products are: copper plating nickel, SUS304, SUS316. Special requirements, undertake all orders! National toll-free number: 400-088-6591

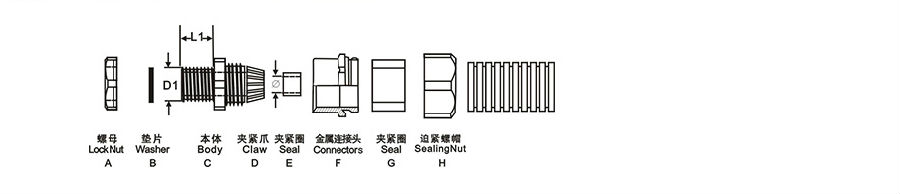

Product materials: the A.C.F.G. is made of fine brass nickel-plated nickel, and the D part is made of UL approved nylon Pa66, and the B.E parts are made from EPDM resistant rubber. The rubber of each aperture and material is acceptable.
Screw specifications: Metric (Metric/EN50262), PG teeth, G (PF) teeth and dental teeth (NPT).
Working temperature: - 40 ℃ ~ + 100 ℃ short time can be up to + 120 ℃.
The color of the product: A.C.F.G is metallic, D is white, and B.E is black
Protection grade: within the range of the specified card, use the o-seal ring to rotate the urgent connector to IP68.

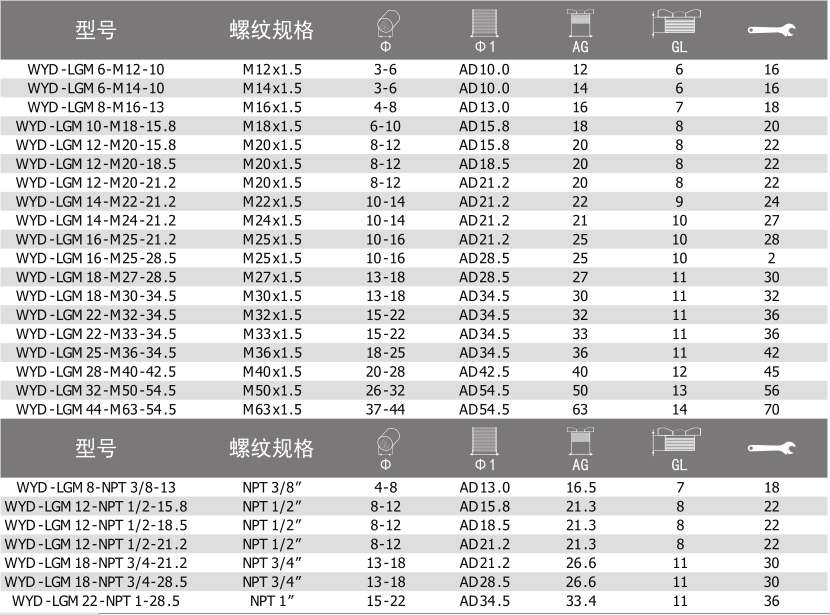

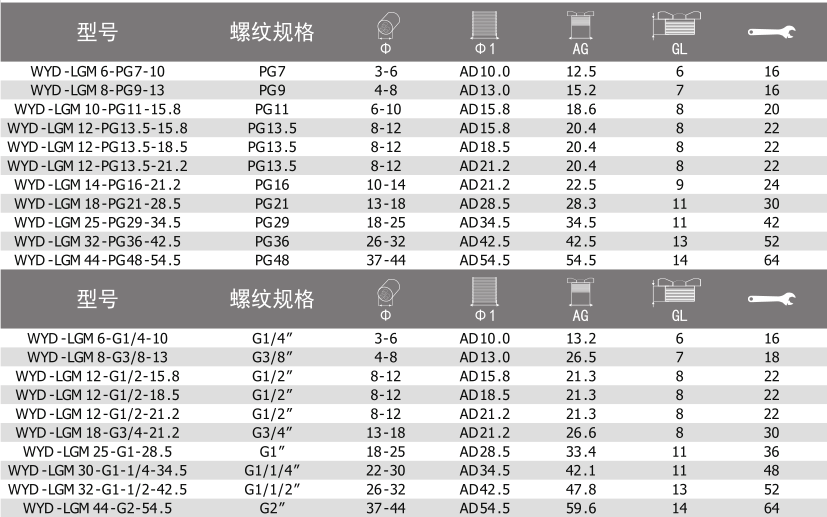

Product specifications
