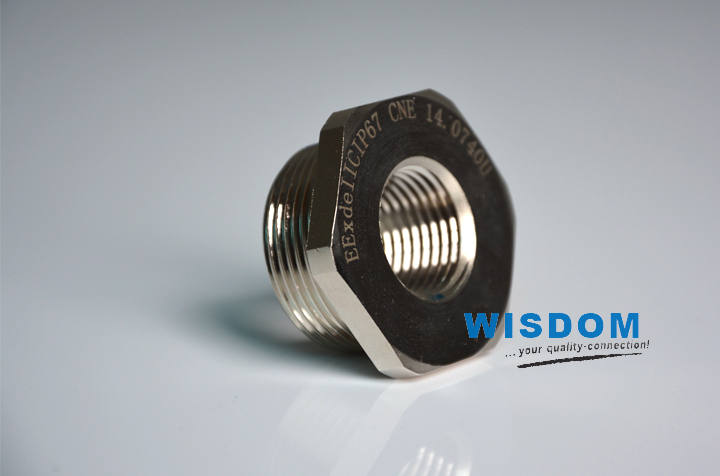

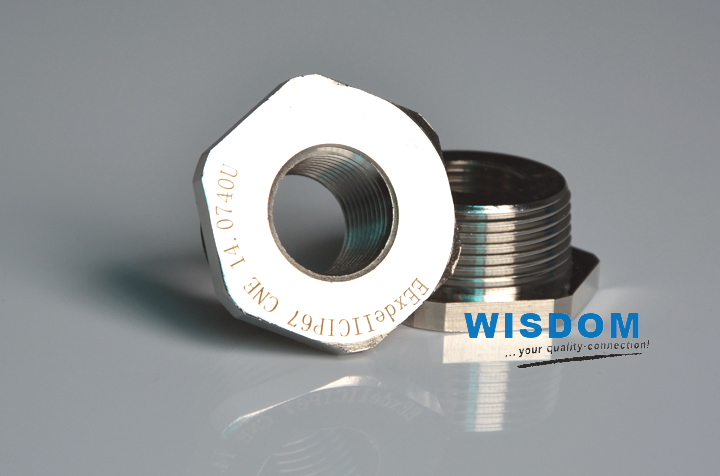

- product name： Brass-plated nickel-plated ring
- category： Electrical accessories
- Product Features：
The wyd-bjh series products are very complex, the products are in stock, the products meet the explosion-proof requirements, and the certificate can be obtained. Free consultation: 40088-6591
The number of clicks：5948
product description
Material: high quality brass surface with nickel-9 micron
Application: thread filling, which is used to open large or small switch joints.
More options: custom-made stainless steel material, 45 # steel quality and nylon PA66 material, all available for free: 400-88-6591
Product specifications
Bjh-m/P metal ring - the metric thread turns PG

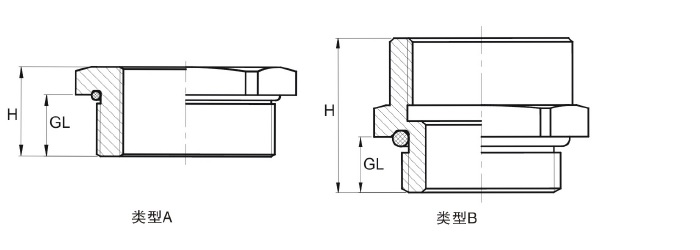

| specifications | External thread specification | Internal thread specification | Thread length L1 (mm) | The total length (mm) | Wrench size (mm) | In the form of | Packing unit (only/bag) |
| BJH-M16/P07 | M16×1.5 | PG7 | 6 | 8.5 | 18 | A | 50 |
| BJH-M16/P09 | M16×1.5 | PG9 | 6 | 16.5 | 19 | B | 50 |
| BJH-M16/P11 | M16×1.5 | PG11 | 6 | 16.5 | 22 | B | 50 |
| BJH-M18/P09 | M18×1.5 | PG9 | 6 | 16.5 | 21 | B | 50 |
| BJH-M18/P11 | M18×1.5 | PG11 | 6 | 16.5 | 22 | B | 50 |
| BJH-M18/P13 | M18×1.5 | PG13.5 | 6 | 16.5 | 24 | B | 50 |
| BJH-M20/P11 | M20×1.5 | PG11 | 7 | 17.5 | 24 | B | 50 |
| BJH-M20/P13 | M20×1.5 | PG13.5 | 7 | 17.5 | 24 | B | 50 |
| BJH-M20/P16 | M20×1.5 | PG16 | 7 | 20 | 27 | B | 50 |
| BJH-M25/P16 | M25×1.5 | PG16 | 7 | 20 | 28 | B | 25 |
| BJH-M25/P21 | M25×1.5 | PG21 | 7 | 25 | 32 | B | 25 |
| BJH-M27/P13 | M27×2.0 | PG13.5 | 7 | 10 | 30 | A | 50 |
| BJH-M27/P16 | M27×2.0 | PG16 | 7 | 10 | 30 | A | 25 |
| BJH-M32/P16 | M32×1.5 | PG16 | 8 | 11.5 | 36 | A | 25 |
| BJH-M32/P21 | M32×1.5 | PG21 | 8 | 11.5 | 36 | A | 25 |
| BJH-M32/P29 | M32×1.5 | PG29 | 8 | 23.5 | 40 | B | 25 |
| BJH-M40/P29 | M40×1.5 | PG29 | 9 | 25 | 45 | B | 25 |
| BJH-M40/P36 | M40×1.5 | PG36 | 9 | 27.5 | 50 | B | 25 |
| BJH-M50/P21 | M50×1.5 | PG21 | 10 | 14 | 55 | A | 25 |
| BJH-M50/P29 | M50×1.5 | PG29 | 10 | 14 | 55 | A | 25 |
Bjh-p/M metal transformer ring - PG screw thread
| specifications | External thread specification | Internal thread specification | Thread length L1 (mm) | The total length (mm) | Wrench size (mm) | In the form of | Packing unit (only/bag) |
| BJH-P09/M16 | PG9 | M16×1.5 | 6 | 16.5 | 20 | B | 50 |
| BJH-P09/M20 | PG9 | M20×1.5 | 6 | 17.5 | 24 | B | 50 |
| BJH-P11/M20 | PG11 | M20×1.5 | 6 | 17.5 | 24 | B | 50 |
| BJH-P13/M20 | PG13.5 | M20×1.5 | 7 | 18 | 24 | B | 50 |
| BJH-P16/M20 | PG16 | M20×1.5 | 7 | 18 | 24 | B | 50 |
| BJH-P16/M25 | PG16 | M25×1.5 | 7 | 19 | 28 | B | 25 |
| BJH-P21/M25 | PG21 | M25×1.5 | 7 | 18.5 | 32 | B | 25 |
| BJH-P21/M32 | PG21 | M32×1.5 | 7 | 20 | 36 | B | 25 |
| BJH-P21/M40 | PG21 | M40×1.5 | 7 | 23 | 45 | B | 25 |
| BJH-P29/M40 | PG29 | M40×1.5 | 8 | 24 | 45 | B | 25 |
| BJH-P36/M50 | PG36 | M50×1.5 | 9 | 25 | 55 | B | 25 |
| BJH-P42/M63 | PG42 | M63×1.5 | 10 | 31 | 70 | B | 10 |
