Choose Vid, the only good choice! A leading brand of electrical components

  • product name: FTStainless steel cable gland
  • category: Cable waterproof joint series
  • Product Features:

    FT Type 304 stainless steel cable joint, all specifications are in stock, the products comply with IP68 certification, CE certification, ROSH certification, and domestic CNEX explosion-proof certification! Material can be selected SUS304, 316 and 316L and other production, the national free telephone: 400-088-6591 [request ATEX explosion-proof certificate, please contact customer service]


    证书下载:金属接头防爆证书SYEx18.0980X.pdf


The number of clicks:16062
0

product description


Product features: metal parts is 304 (316, 316 l) stainless steel, the clamping claw for nylon PA66, seal for EPDM or NBR rubber


Protection grade: within the prescribed scope of bayonet, use flat seal screw tight tight head, IP68


Working temperature: - 40 ℃ ~ 100 ℃ is used in the harsh environment, excellent anti-corrosion performance


Method of use: d, FT stainless steel cable waterproof connector is the product of form a complete set of the cable, connector cable can be lock, the other end can access devices on the box body, also can choose thread access according to the import and export for the internal thread of electric devices.

More options: d, can according to customer's actual needs, special custom. We need to place an order to inquire: 400-088-6591


Product specifications

无标题文档

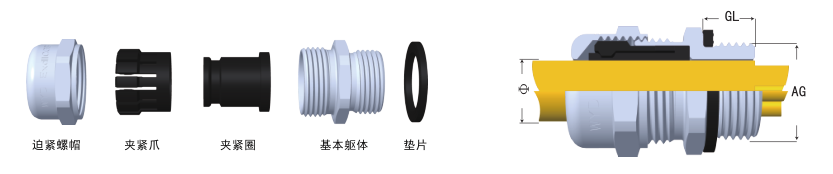

产品结构图




有任何不明白的地方咨询:400-088-6591

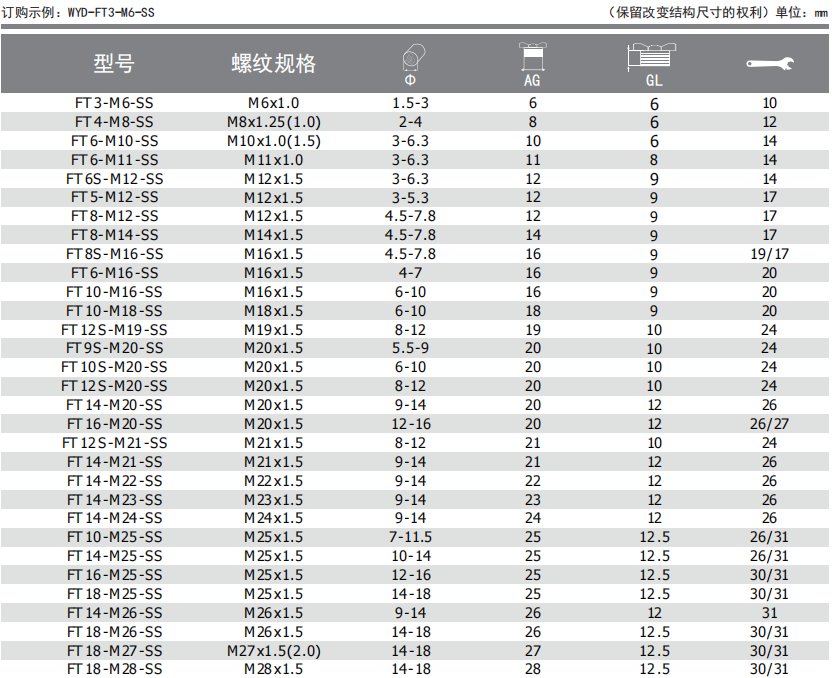

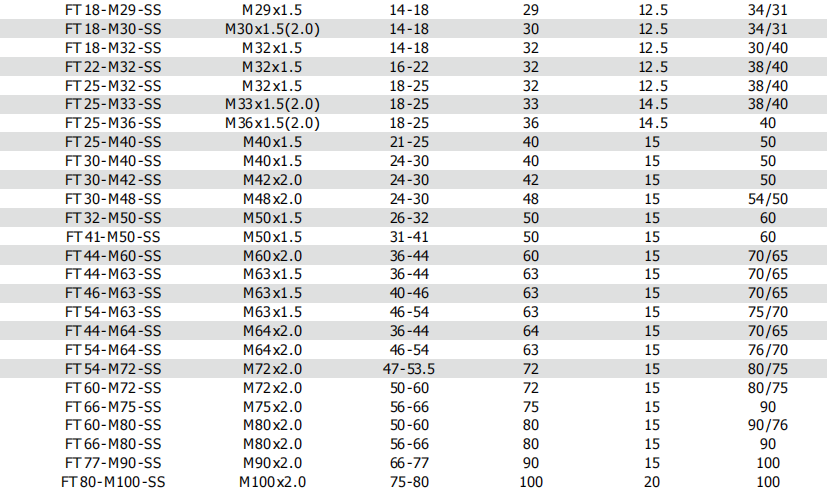

 产品选型表



提示:此产品默认不带螺母,承接各种非标定做。
