- product name: Stainless steel cable gland G
- category: Cable waterproof joint series
- Product Features:
WYD-FT Type 304 stainless steel cable joint, all specifications are in stock, the products comply with IP68 certification, CE certification, ROSH certification, and domestic CNEX explosion-proof certification! Material can be selected SUS304, 316 and 316L and other production, the national free telephone: 400-088-6591 [request ATEX explosion-proof certificate, please contact customer service]
Product characteristics: 304 stainless steel isolation explosion-proof products produced, the special design of clamping claw and clamp ring, cable clamping range, especially tensile strength, waterproof, dustproof, salt resistance, weak acid, alcohol, oil, grease and general solvent.
Thread size: metric (Metric), Germany (PG), tooth tooth [G inch (PF)] and UNF (NPT)

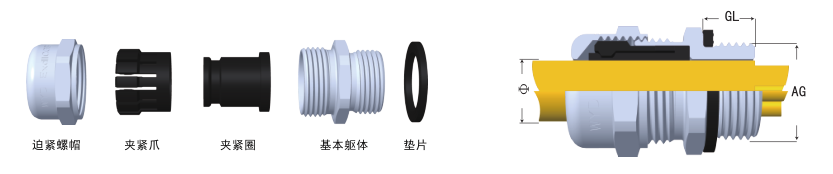

Product material: A.C.F parts made of 304 stainless steel (stainless steel 316, 316L), E parts made of nylon PA66 approved by UL (fire grade UL 94V- 2), B and D parts are made of three yuan ethylene propylene rubber.
Protection level: two isolation type dII (EX), in the specified bayonet range, the use of flat sealing ring, spiral pressing tight head, up to IP68
Operating temperature: static: -40 to 110 degrees Celsius, short time to 120 degrees celsius. Dynamic: -20 to 80 DEG C, a short time of 100 degrees Celsius
Method of use: Hird type FT stainless steel cable waterproof connector cable supporting products, connector cable can be locked, the other end of the box can access equipment, electric equipment can also be based on the use of threaded access internal threads on the import and export.
More options: according to the actual needs of customers, special customization. When ordering, call enquiry: 400-088-6591
