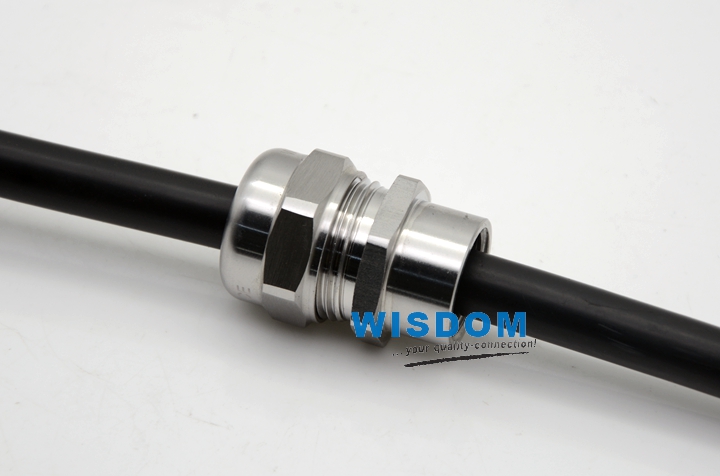

- product name: Stainless steel Internal thread cable gland
- category: Cable waterproof joint series
- Product Features:
FT-F 304Stainless steel Internal thread cable gland,Material can be used Brass nickel plated、SUS304、316and other production, the national free telephone: 400-088-6591
Thread size: metric (Metric), Germany (PG), tooth tooth [G inch (PF)] and UNF (NPT)
Product material: A.C.F parts made of 304 stainless steel (stainless steel 316, 316L,Brass nickel plated),Clamping claw for nylon PA66, seals for EPDM or NBR rubber
Protection level: in the specified bayonet range,can reach IP68
Operating temperature: static: -40 to 110 degrees Celsius, short time to 120 degrees celsius. Dynamic: -20 to 80 DEG C, a short time of 100 degrees Celsius
Method of use: Hird type FT-F stainless steel cable waterproof connector cable supporting products, connector cable can be locked,According to the other end thread access to external thread on the steel pipe and equipment import and export
More options: according to the actual needs of customers, special customization. When ordering, call enquiry: 400-088-6591
Product specifications

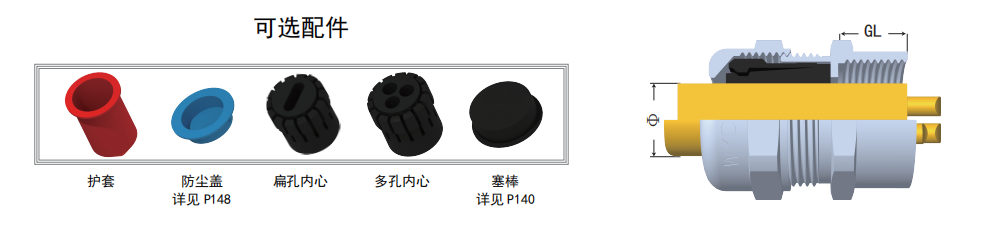

产品结构图
有任何不明白的地方咨询:400-088-6591

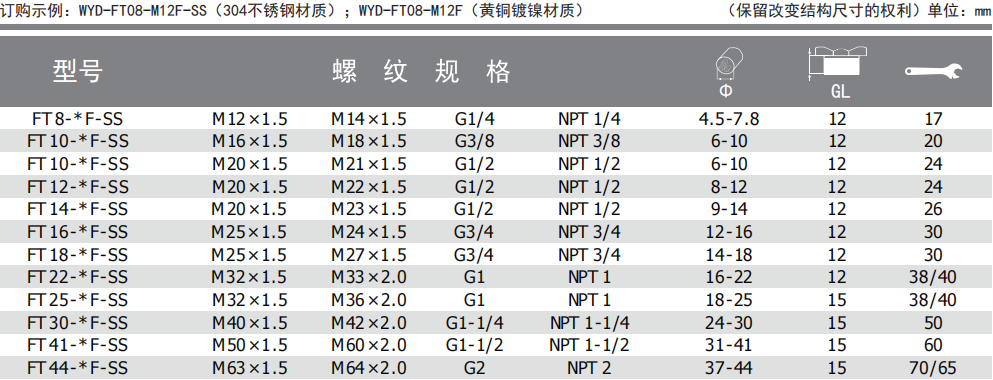

产品选型表
