  • product name: porous cable gland
  • category: Cable waterproof joint series
  • Product Features:

    FT-Hporous cable gland, Material can choose brass nickel plated, SUS304, 316 and 316 l, the free phone: 400-088-6591


The number of clicks:4715
0

product description

Product material: external metal for 304 stainless steel (316316 L) brass nickel plating, and clamping claw for nylon PA66, seal for EPDM or NBR rubber


Protection grade: within the prescribed scope of bayonet, use flat seal screw tight tight head, IP68

Working temperature: static: - 40 ℃ to 110 ℃, a short period of time up to 120 ℃. Dynamic: - 20 ℃ to 80 ℃, a short period of time up to 100 ℃

Method of use: d, the FT - H porous cable waterproof connector is the product of form a complete set of the cable, connector cable can be lock, the other end can access devices on the box body, also can choose thread access according to the import and export for the internal thread of electric devices.

More options: d, can according to customer's actual needs, special custom. We need to place an order to inquire: 400-088-6591


Product specifications

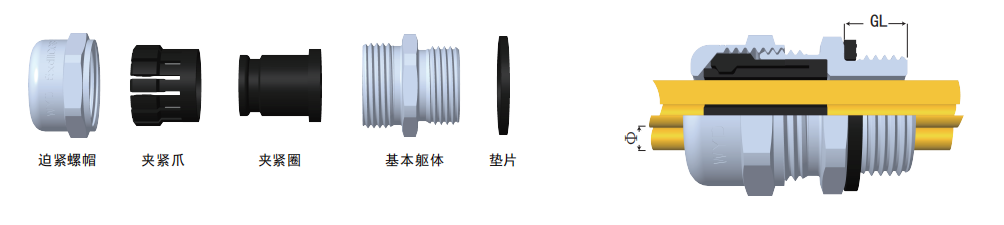

产品结构图




有任何不明白的地方咨询:400-088-6591

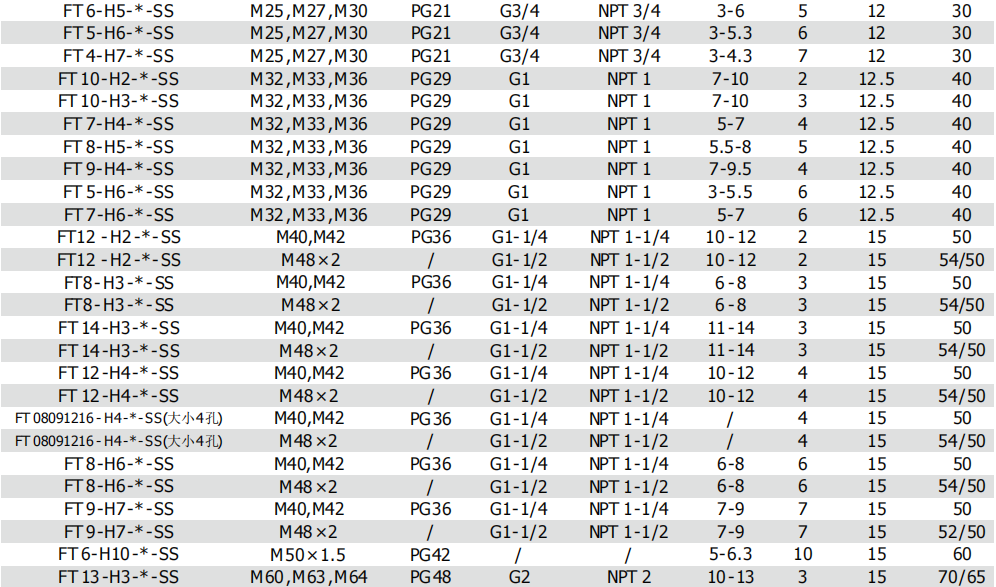

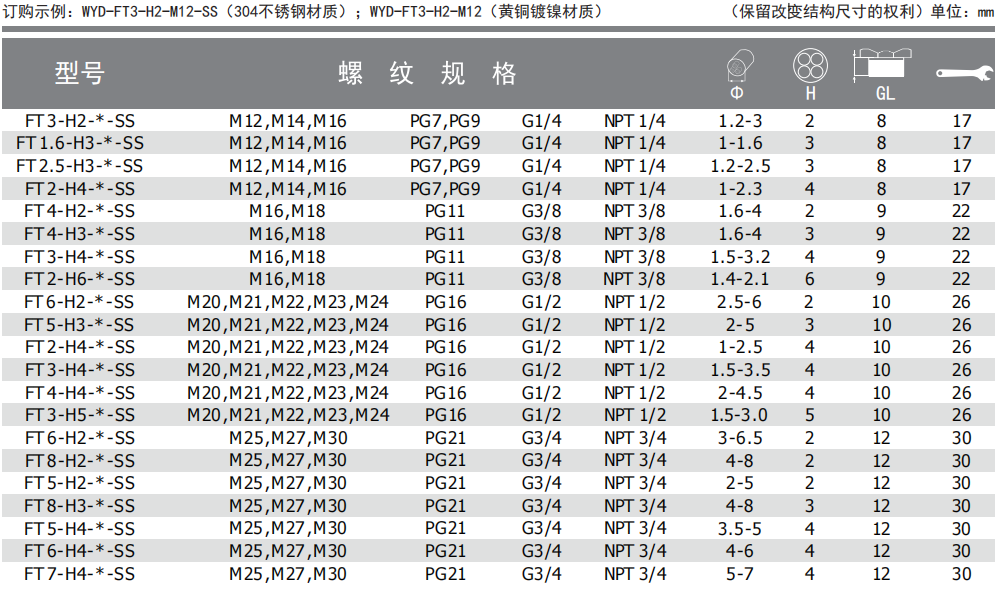

产品选型表
