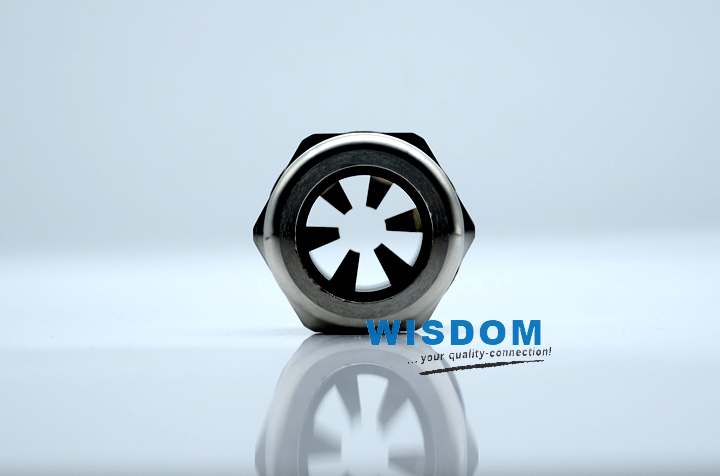

- product name: shielding cable gland
- category: Cable waterproof joint series
- Product Features:
EMC shielding cable gland, Material can choose brass nickel plated, SUS304, 316 and 316 l, the free phone: 400-088-6591
Product material: external metal for 304 stainless steel (316316 L) brass nickel plating, and clamping claw for nylon PA66, seal for EPDM or NBR rubber
Protection grade: within the prescribed scope of bayonet, use flat seal screw tight tight head, IP68
Working temperature: - 40 ℃ ~ 100 ℃ is used in the harsh environment, excellent anti-corrosion performance
Method of use: d, EMC shielding cable joint is the product of form a complete set of the cable, connector cable can be lock, the other end can access devices on the box body, also can choose thread access according to the import and export for the internal thread of electric devices.
Product features: the special design, when using isolation cable, can reduce low-voltage electromagnetic wave is abate, contact piece, can better control the contact area
More options: d, can according to customer's actual needs, special custom. We need to place an order to inquire: 400-088-6591
Product specifications

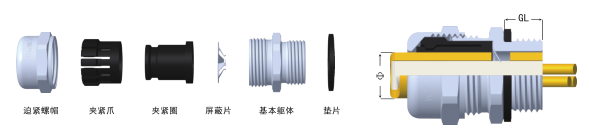

产品结构图
有任何不明白的地方咨询:400-088-6591

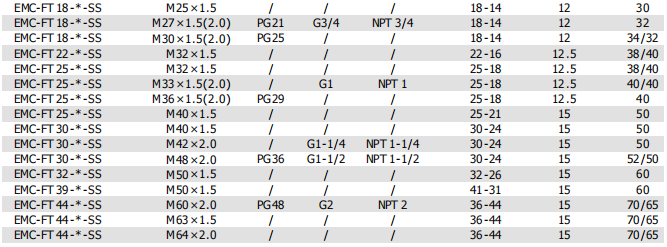

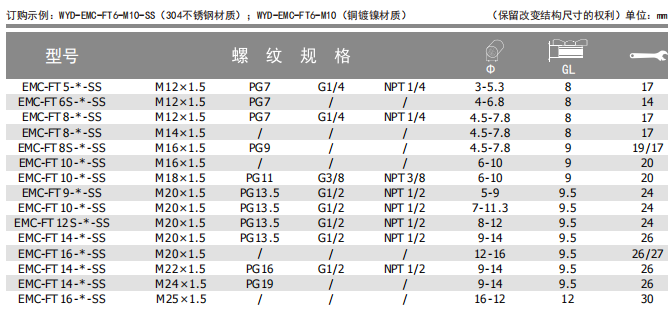

产品选型表
