- product name: Flame retardant metal cable gland
- category: Cable waterproof joint series
- Product Features:
FT - where V0 flame retardant cable joint, metal products meet IP68 certification, CE certification, ROSH certification! Copper, SUS304 material can choose H60-1 and 316, the national free telephone: 400-088-6591
Snails: Metric (Metric), German dental (PG), English dental (PF), and American dental (NPT)
Product material: A.C.F parts made from copper alloy plating nickel (stainless steel 304, 316), E parts made from of UL approved nylon PA66 (fire prevention level UL 94 v - 2) parts B and D are all made of epdm rubber.
Protection grade: which is in the range of the prescribed mouth, using the flat sealing ring to tighten the tight head, reaching IP68
Working temperature: static: - 40 ℃ to 110 ℃, a short period of time up to 120 ℃. Dynamic: - 20 ℃ to 80 ℃, a short period of time up to 100 ℃
Features:V0Flame retardant
More options: vied can be customized depending on the customer's actual needs. Call for advice when you need to order: 40088-6591
Product specifications
产品结构示意图
有任何不明白的地方咨询:400-088-6591

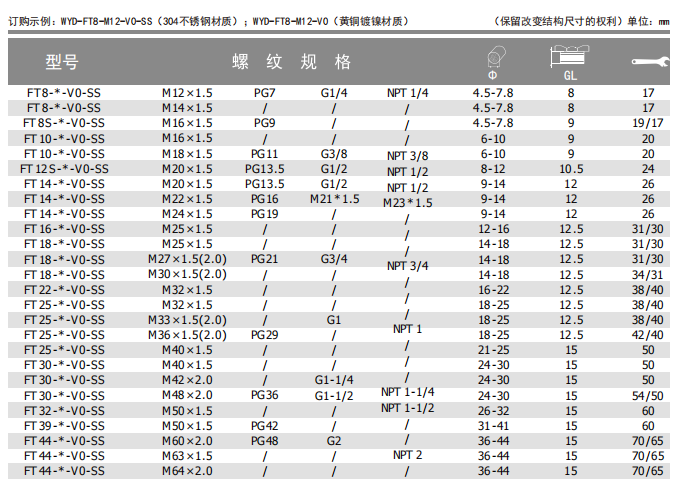

产品选型表
