- product name: Take over type cable gland
- category: Cable waterproof joint series
- Product Features:
M - F over type explosion-proof cable joint, material can choose SUS304, 316 and 316 l, the free phone: 400-088-6591
Product material: being the external metal for 304 stainless steel (nickel plated brass), clamping claw for nylon PA66, seal for EPDM or NBR rubber
Screw tooth specifications: being metric M and G and American dental NPT inch teeth
Working temperature: being - 40 ℃ ~ + 100 ℃ short time can be up to + 120 ℃
Do product features: external thread connection box, inside the nut thread can be used to connect steel pipe, galvanized pipe, round pipe external thread, and internal normal lock cable. Protection grade of IP68
Do custom description: this takeover type product customization flexibility is bigger, can according to customer requirements, customize the internal and external thread, order can contact: 400-088-6591
Product specifications

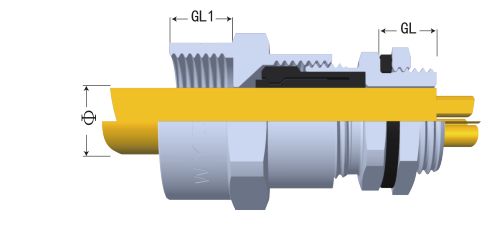

产品结构图
有任何不明白的地方咨询:400-088-6591

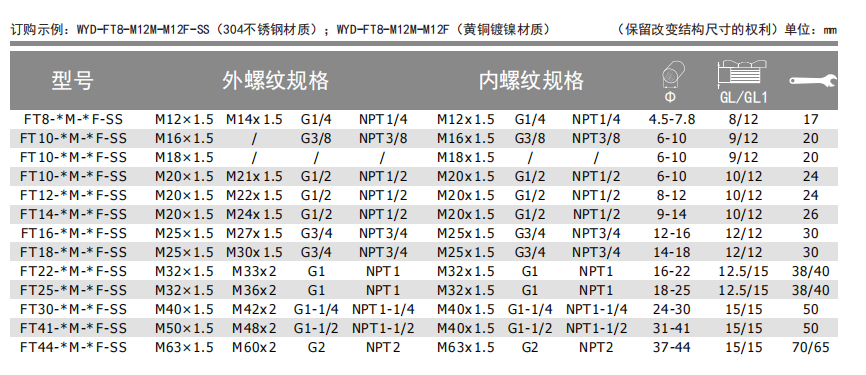

产品选型表
