  • product name: Stainless steel hose cable gland
  • category: Cable waterproof joint series
  • Product Features:

    RG - SS stainless steel hose cable joint product of special design can prevent loose wires, and metal hose can be attached, loading and unloading simply pull out plug without tools, greatly reduces the installation time, large range of clamping cable tensile resistance strong, products are acid and alkali resistant, corrosion resistant properties, such as chemicals and solvents can be water-proof and dust-proof. Product size comprehensive, widely used in various fields


The number of clicks:6094
0

product description

Being is the product material: metal parts for 304 stainless steel stainless steel (316), the clamping claw for nylon PA66, seals for EPDM or NBR rubber, soft tube protector for stainless steel material


Screw tooth specifications: being metric screw tooth M, inch screw tooth G, american-made screw tooth NPT, screw tooth PG DE system


Protection grade: being within the prescribed scope of bayonet, use o-rings forced tight head spin, can reach IP67


Working temperature: being - 40 ℃ to + 100 ℃, a short period of time can reach + 120 ℃


Do product features: this product can prevent loose wires, and metal hose can be attached, handling simply pull out plug without tools, greatly reduces the installation time, large range of clamping cable tensile resistance strong, products are acid and alkali resistant, corrosion resistant properties, such as chemicals and solvents can be water-proof and dust-proof




Product specifications

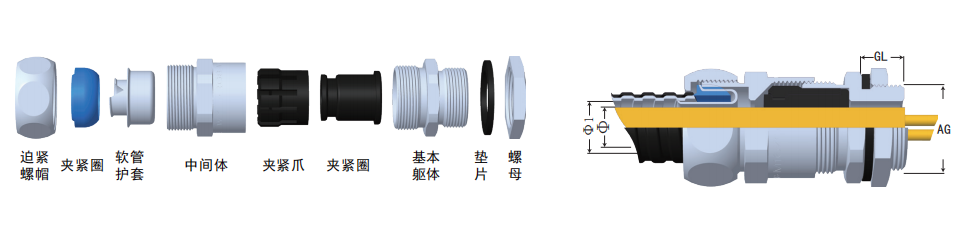

产品结构图

有任何不明白的地方咨询:400-088-6591

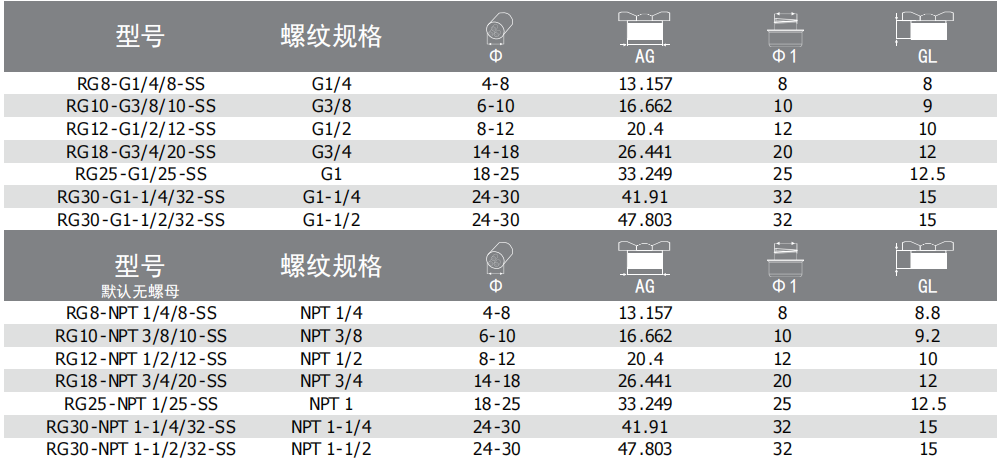

选型表
